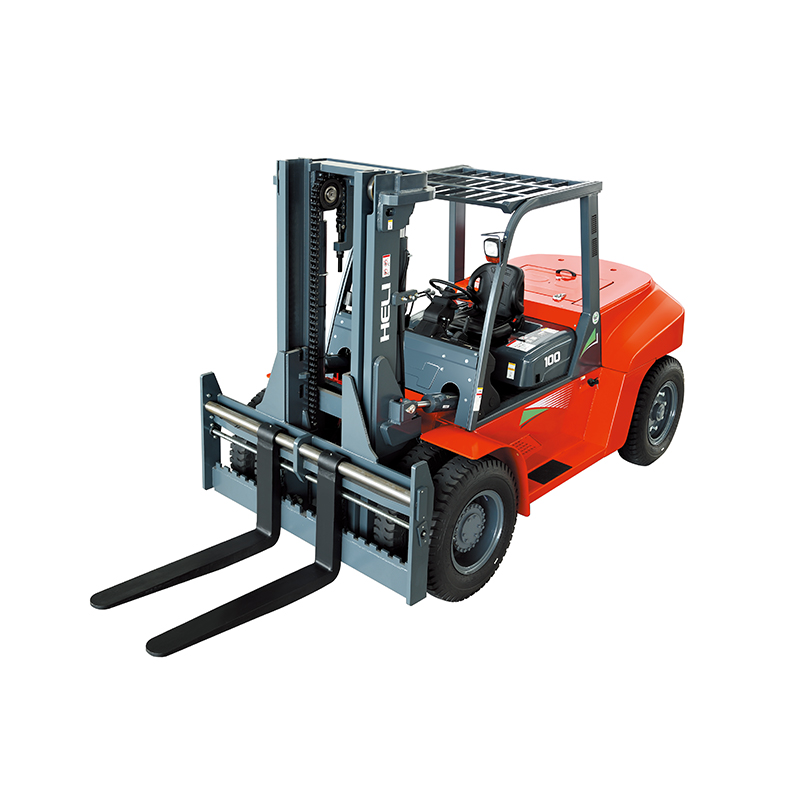

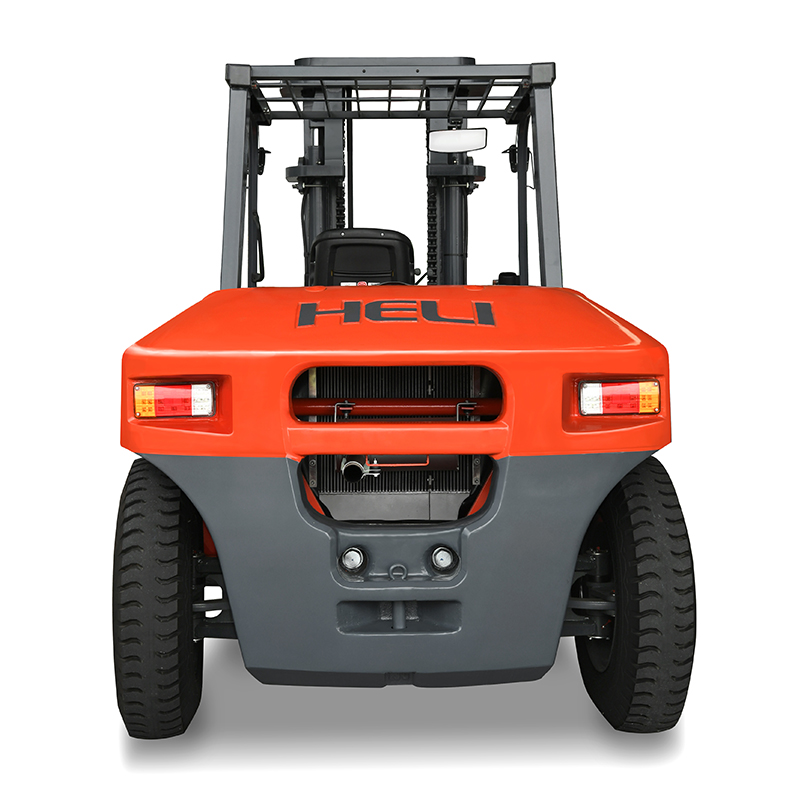

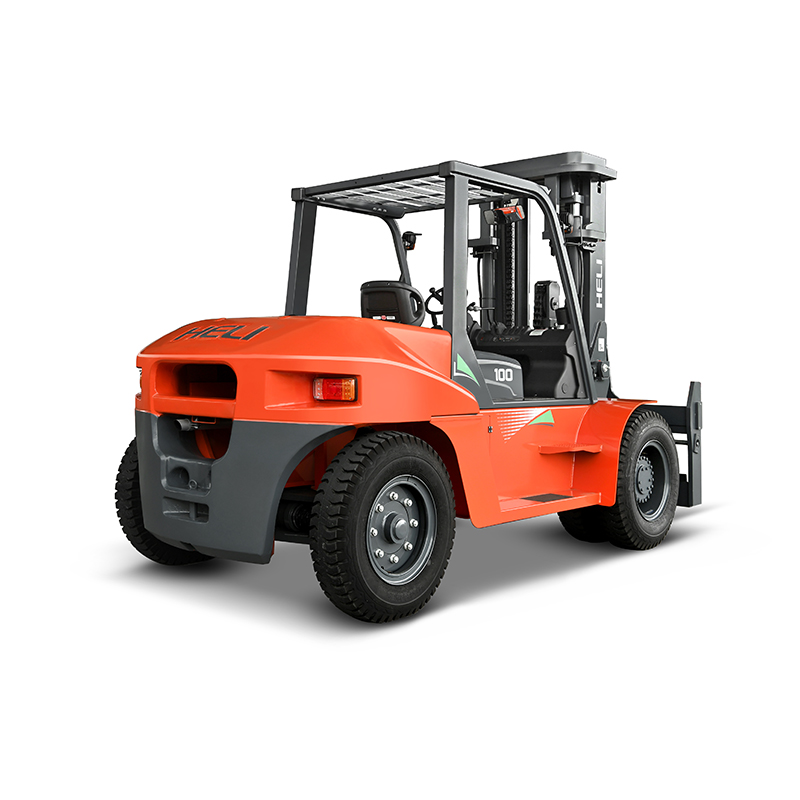

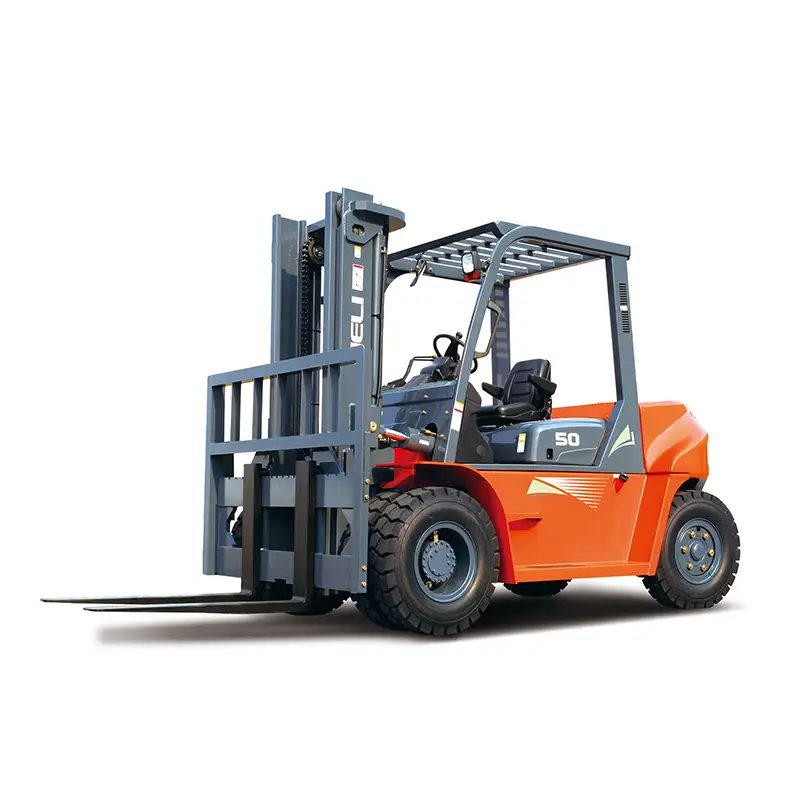

5-10t G Series Diesel / LPG Forklift Truck

1. The core components of frame, mast and overhead guard adopt CAE forward design to ensure the strength of the whole truck and make the whole truck stronger.
2. Independent integrated electronic control box features waterproof, dust-proof, heat insulation and oil pollution isolation and thus reduce the failure rate of electrical components and improve the convenience of maintenance.
3. The maximum opening angle of the hood reaches to 80 degrees, which provides a spacious space for inspection and maintenance.

Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.

Parameter

Model Designation

CP(C)D50/

CP(Q)(Y)D50

CP(C)D60/

CP(Q)(Y)D60

CP(C)D70/

CP(Q)(Y)D70

CPCD85CPCD100
Load Capacitykg500060007000850010000
Load Centermm600
Wheel base 14501450145016501650
Overall height(overhead guard)mm21402140214021502150
Overall length(without fork)mm22772281229925802638
Overall widthmm10701070107011501150
Min.outside turning radiusmm18751910193021702240
