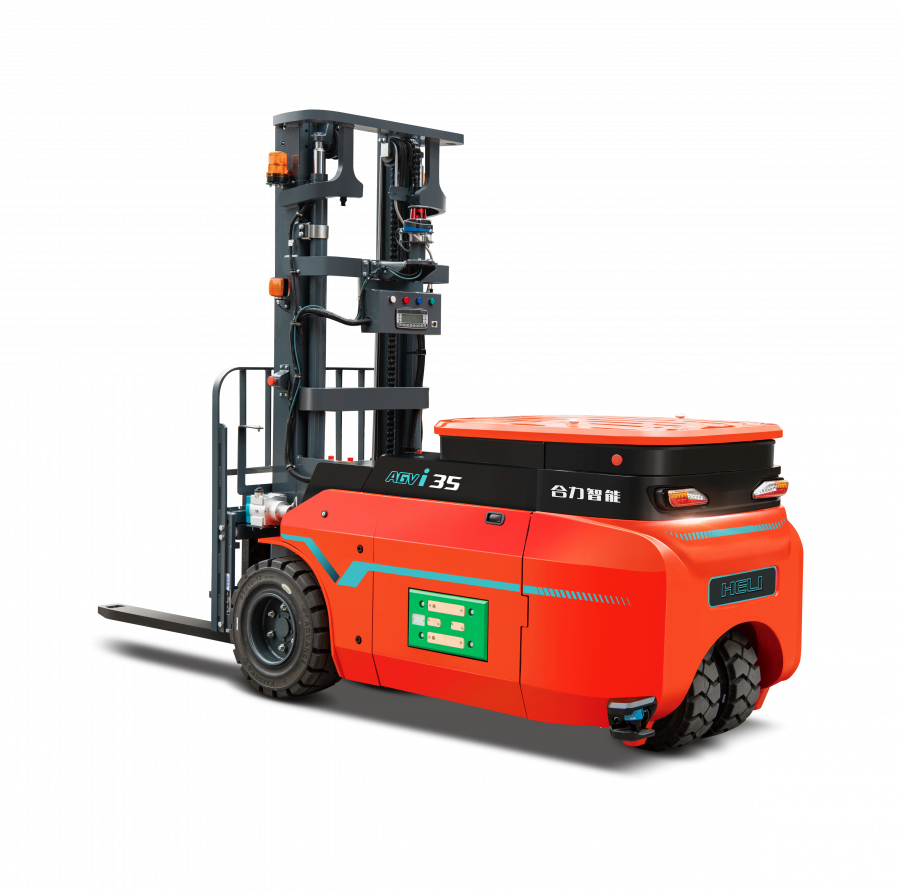

Commonly used for loading and unloading of goods and transferring materials indoors and outdoors.
1. The AGV has small turning radius and strong passing ability;
2. No load reduction at 3m with a load of 3.5 ton;
3. The AGV adopts front wheel dual drive which has strong power;
3. The AGV adopts large capacity lithium-ion battery which has long service life;
4. Side placed automatic charging and integrated charger;
Model Designation | CPD35SQ-AGV1A1LI | |
Typology | / | Counterweight |
Navigation | / | Laser navigation |
Load Capacity | kg | 3500 |
Max. lifting height | mm | 5500 |
Max. travelling speed | km/h | 5 |
Min. turning radius | mm | 1920 |
Communication mode | / | 5G/WIFI |
Battery voltage | V/Ah | 80/404 |
Weight | kg | 5300 |
