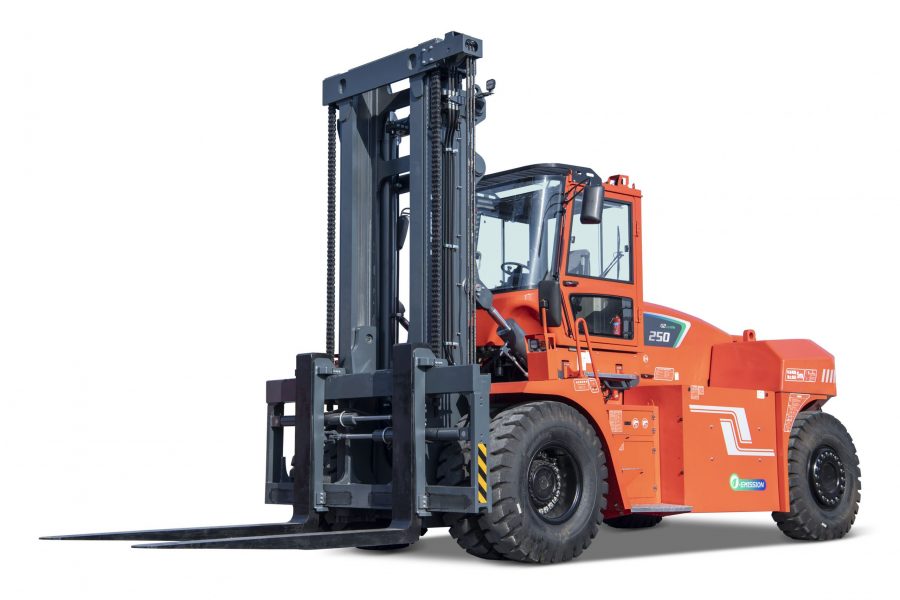

25-55t Li-ion Forklift Truck

1、The truck adopts dual.gun fast charging design, which can charge the battery quickly and improve work efficiency.
2、Integrated inteligent thermal management system realizes the best heat radiating and energy-saving effects and meets high-intensity operations.
3、The power battery adopts quick-change structure design, which can realize fast replacement of operations.
It is easy to operate with bus control handle and paired with imported controller to achieve precise control of movements, ensuring safetyand reliability.
4、The mast is equipped with proximity sensors, which can achieve buffering function for lifting and lowering,providing a comfortable controexperience.
5、The truck is equipped with dual energy recovery system, which can effectively extend the battery service life. The battery duration is morethan 8 hours.
6、The truck is equipped with an automatic fire extinguishing system as standard, which can automatically monitor the internal situation ofthe truck and trigger itself, effectively preventing the progress of fires.

Parameter

Model CPD200-550
Rated capacitykg20000-55000
Mast tilting angle (F/R)°6/10
Min. outside turning radiusmm5920
Lifting speed (loaded/unloaded)mm/s350/370
Max. Gradeability (loaded/unloaded)%20/25
Battery voltageV608
Controller Suzhou LVKON
