1、Intelligent control gearbox for more efficient power transmission.
2、600 V high-voltage platform,which has small electric current and less power loss, achieves high efficiency energy transfer.
3、Single gun fast charging interface offers a maximum charging power up to 120 Kw.
4、The battery has a long service life and the battery SOC can increase to 90% from 10% with in 90 minutes.
5、Cab central control is more comfortable and convenient for driving.

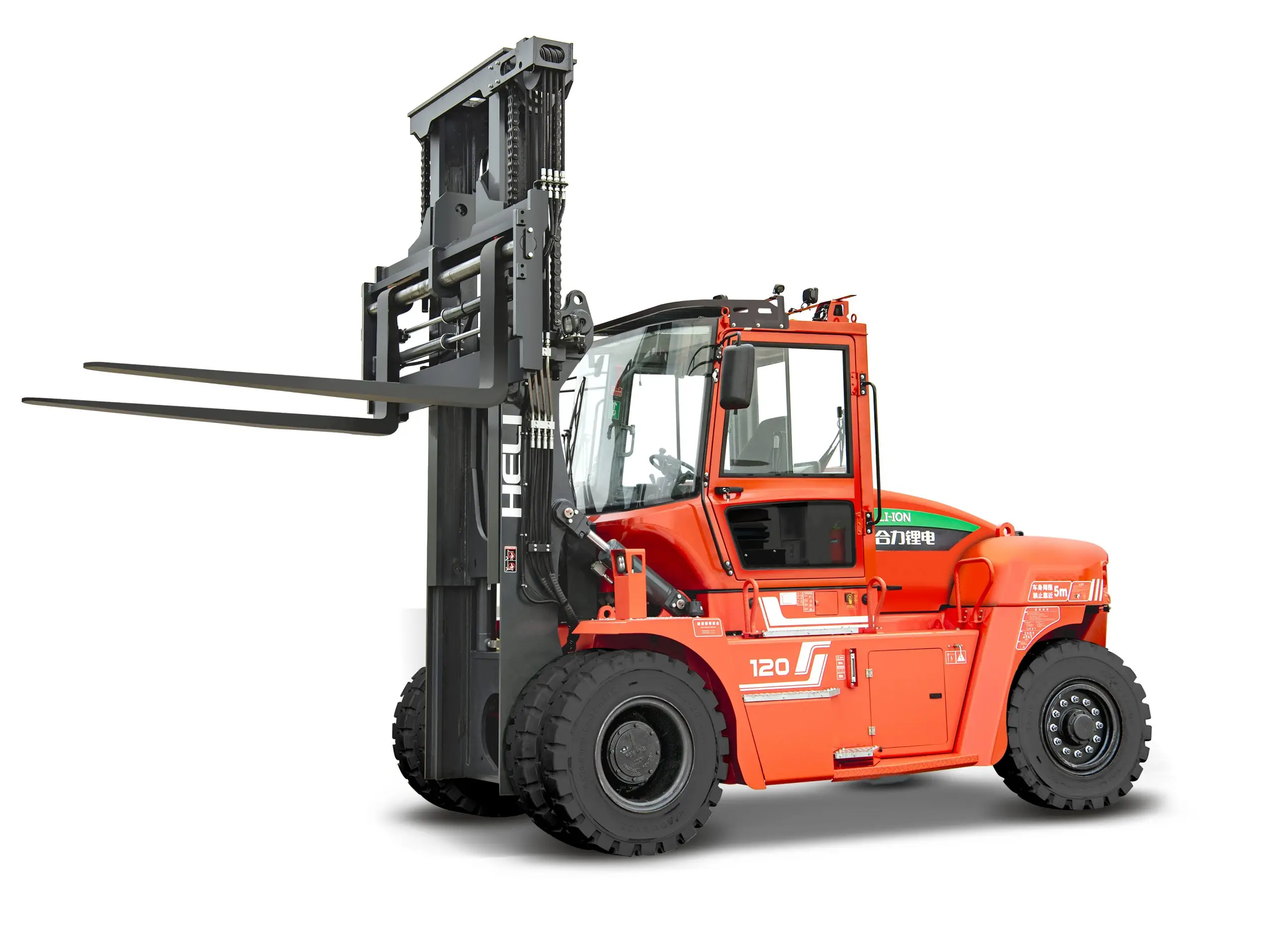

| Model | CPD120-180 | |
| Rated capacity | kg | 12000-18000 |
| Load center | mm | 600 |
| Overall height(overhead guard) | mm | 3365 |
| Overall length(with fork) | mm | 6705 |
| Overall width | mm | 2560 |
| Mast tilting angle (F/R) | ° | 6/12 |
| Mast height (retract/extended) | mm | 3365/4865 |
| Min. outside turning radius | mm | 4500 |
| Travelling speed(loaded/unloaded) | km/h | 17/19 |
| Lifting speed (loaded/unloaded) | mm/s | 320/340 |
| Max. Gradeability (loaded/unloaded) | % | 25 |
| Battery voltage/rated capacity | V/Ah | 531.3V/302Ah |
| Controller | SANTROLL |
