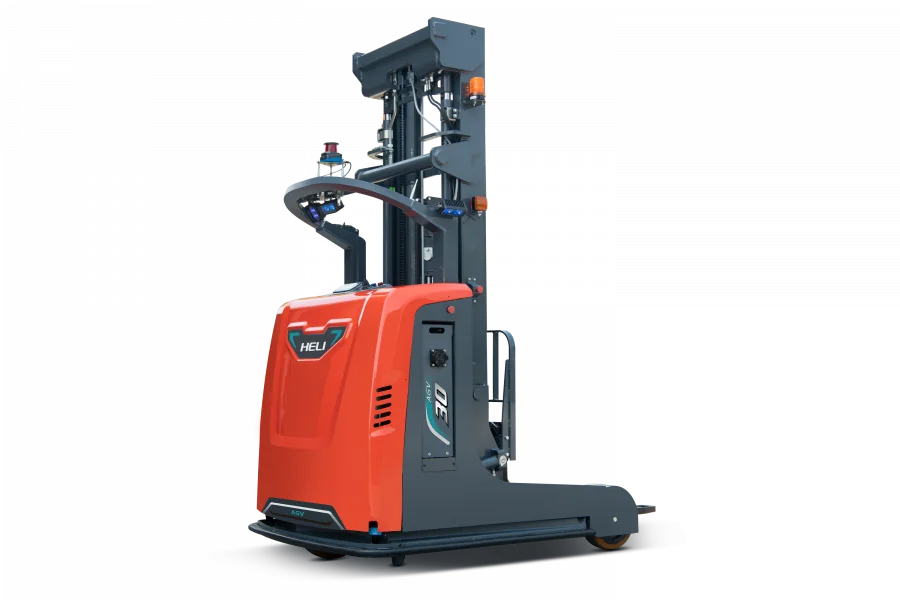

1.6-3 t i-series High-lift storage AGV

Commonly used in factories, e-commerce, logistics centre warehouse materials high storage.
1. The whole vehicle has high mobility and trafficability, and the width of right angle stacking channel is smaller;
2. Equipped with side automatic charging, charging reliability is higher;
3. The innovative designed mast has a good high position loading capacity;
4. AGV Adopts the laser navigation technology, have high positional accuracy.

Parameter

Model Designation    CQD16-AGV1B1LICQD20-AGV1B1LICQD25-AGV11CLICQD30-AGV11CLI
Typology/Reach
Navigation/Laser navigationLaser navigationLaser navigationLaser navigation
Load Capacity             kg1600200025003000
Max. lifting heightmm8500850085008500
Max. travelling speedkm/h7777
Min. turning radiusmm1637175418451925
Communication mode/5G/WIFI5G/WIFI5G/WIFI5G/WIFI
Battery voltageV/Ah48/20248/28080/20280/280
Weightkg3820384644004660
