Commonly used for point-to-point transfer of materials between the ground level warehouse and the production line and between different processes on the production line.
1.AGV has compact structure,occupying minimal passage space;
2.AGV adopting servo control which has higher accuracy;
3.Familiarized design is technological.

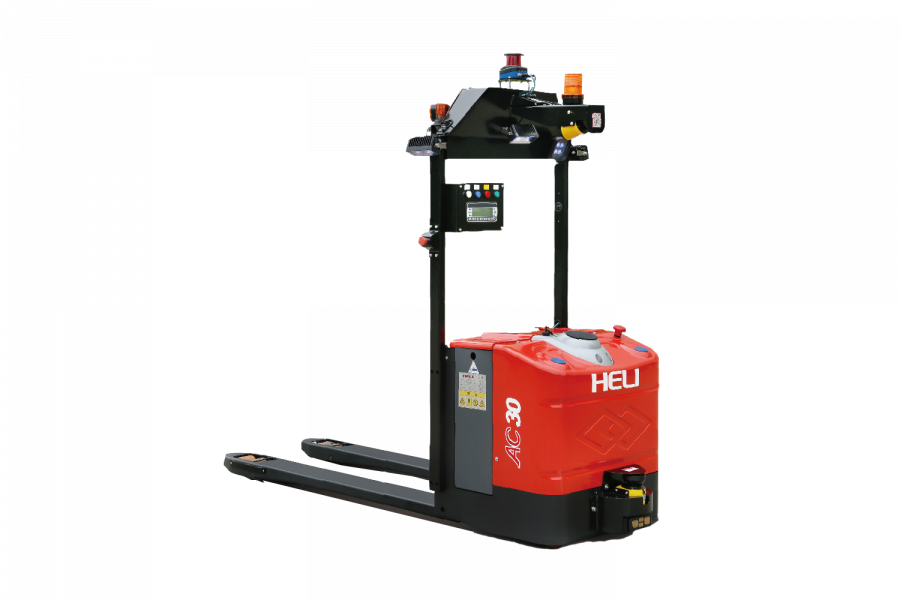

Model Designation | CBD15-AGV4B1LI | CBD20-AGV4B1LI | CBD30-AGV11ALI | |
Typology | / | Pallet truck | Pallet truck | Pallet truck |
Navigation | / | Laser navigation | Laser navigation | Laser navigation |
Load Capacity | kg | 1500 | 2000 | 3000 |
Max. lifting height | km/h | 5 | 5 | 4 |
Max. travelling speed | mm | 1456 | 1456 | 2264 |
Aisle width with pallet 1000×1200 across forks | mm | 2208 | 2208 | 2598 |
Battery voltage | V/Ah | 48/40 | 48/40 | 24/272 |
Weight | kg | 390 | 390 | 737 |
