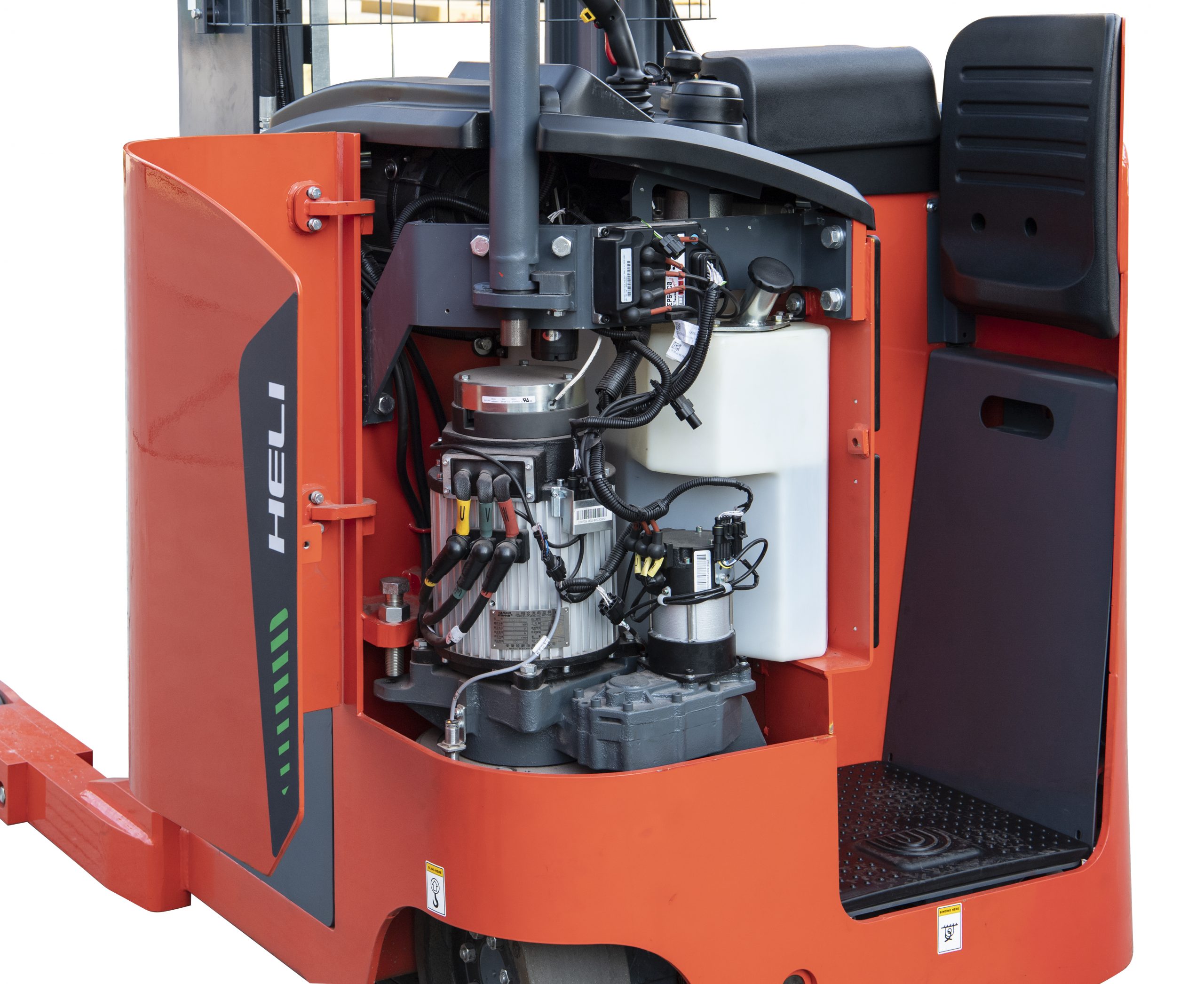

1. Battery can be taken from side, convenient to replacement;

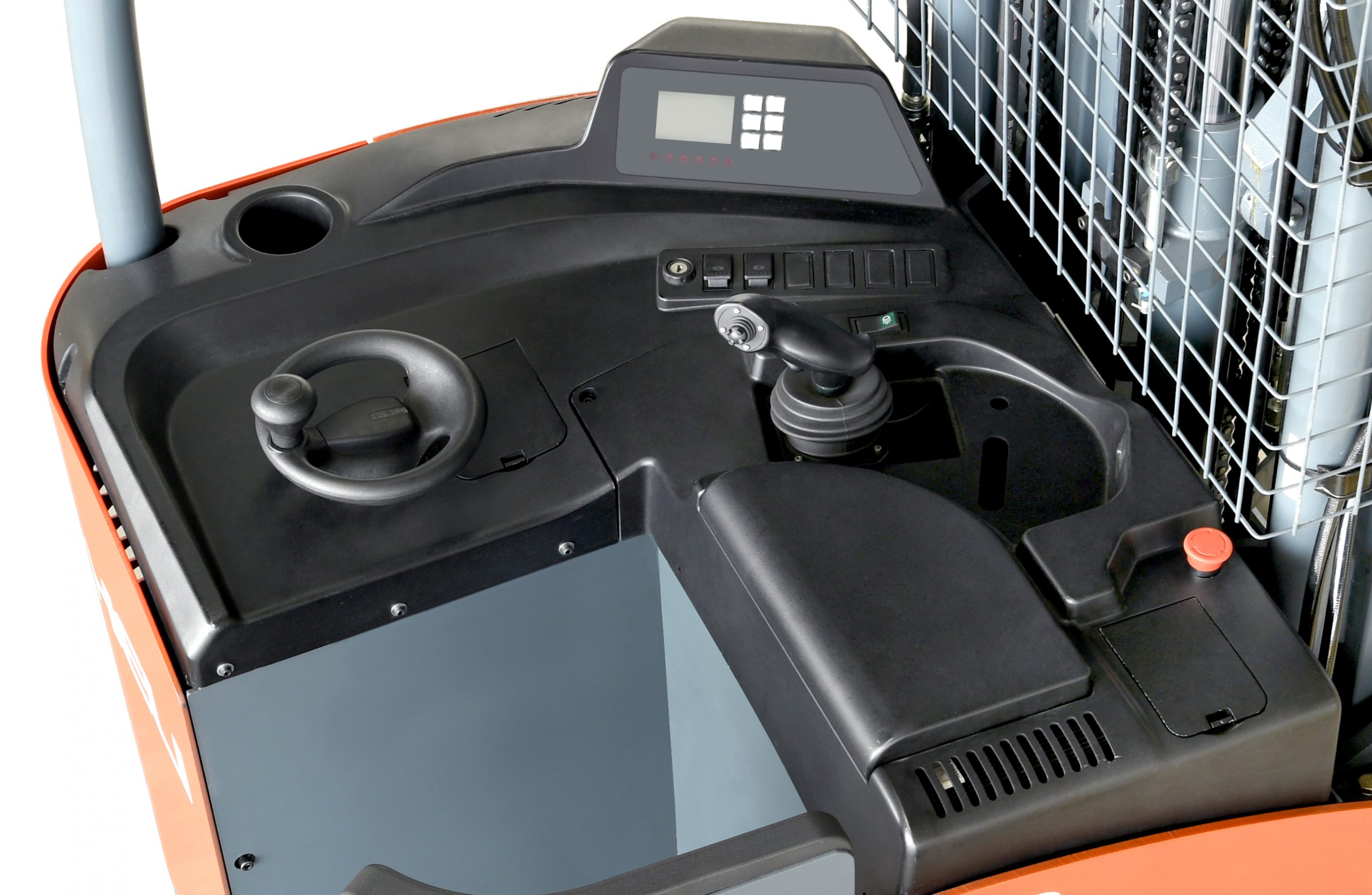

2. Intelligent integrated control handle, comfortable operation;
3. Full proportional hydraulic control, more stable work, more precise control;
4. Three speed mode to adapt different occasions and working conditions;
5. More loading capacity at high level and stability;
6. Large circular arc roof guard frame, suitable angle of the grill plate, and wide view at the top;
7. Driver is fully protected by the chasis.
Model Designation | CQD14X2 | CQD16X1 | CQD18X1 | |
Load Capacity | kg | 1350 | 1500 | 1800 |
Load Center | mm | 600 | 600 | 600 |
Min. outside turning radius | mm | 1838/1874/1936 | 1695 | 1745 |
Reach stroke | mm | 1080 | 600 | 600 |
Battery Voltage | V | 48 | 48 | 48 |
Controller | ZAPI | ZAPI | ZAPI | |
Battery | Lithium battery | Lithium battery | Lithium battery | |
Other | Double scissor Optional: Lead-acid battery | Optional: Lead-acid battery | Optional: Lead-acid battery |
