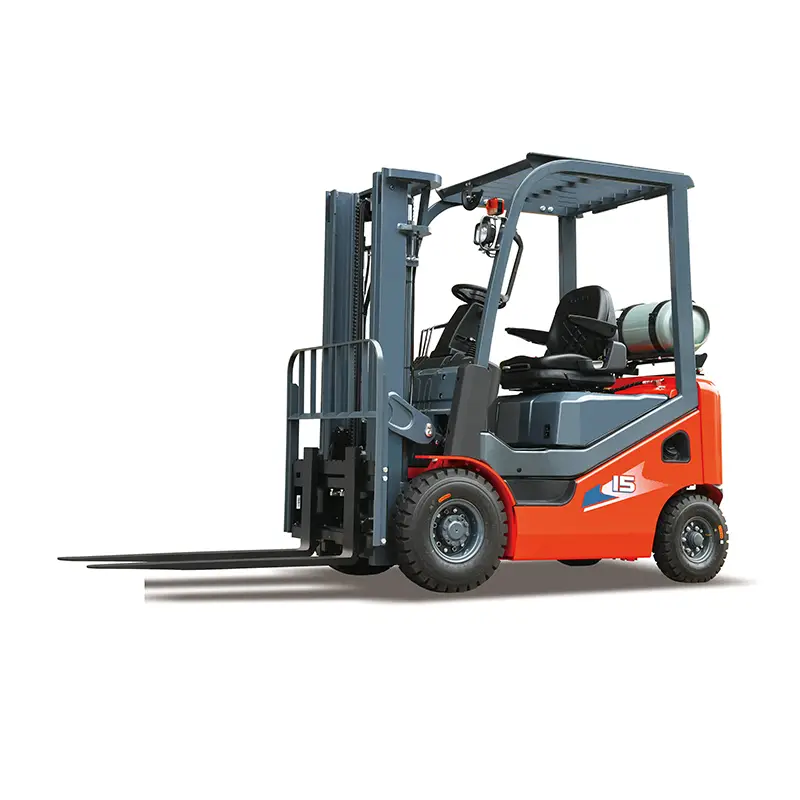

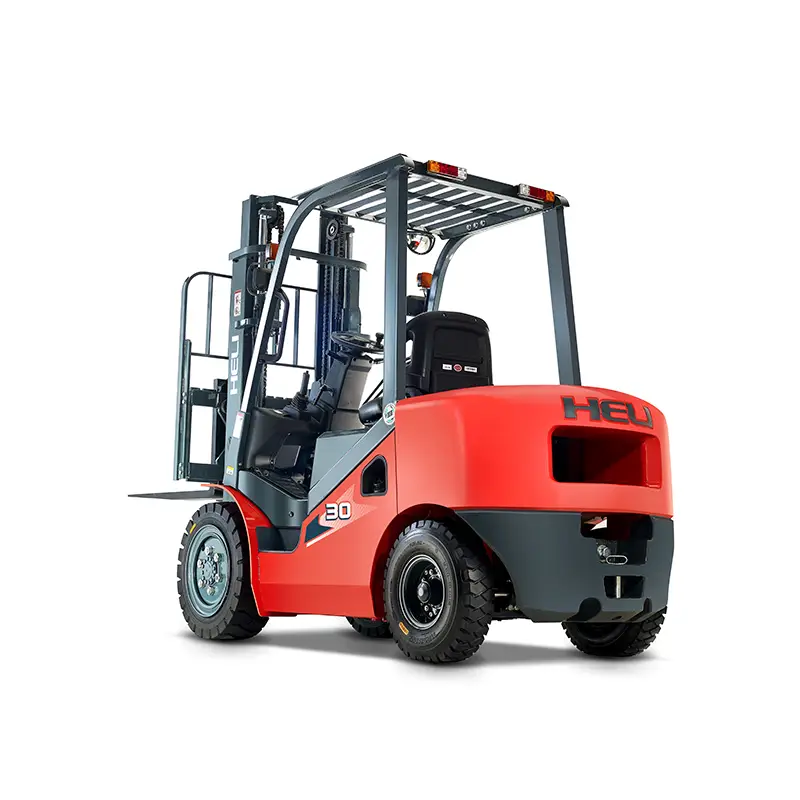

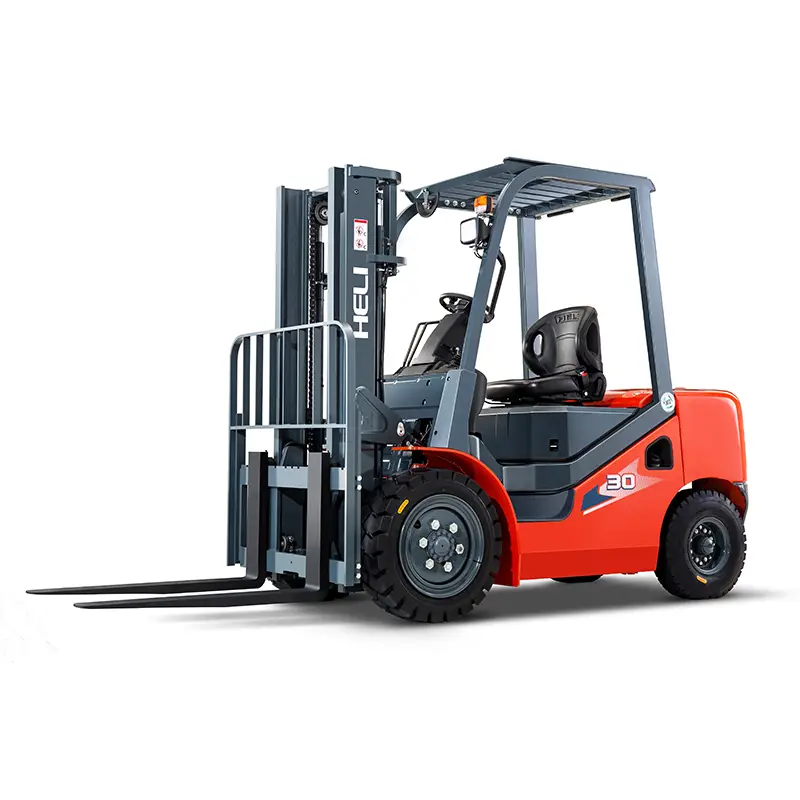

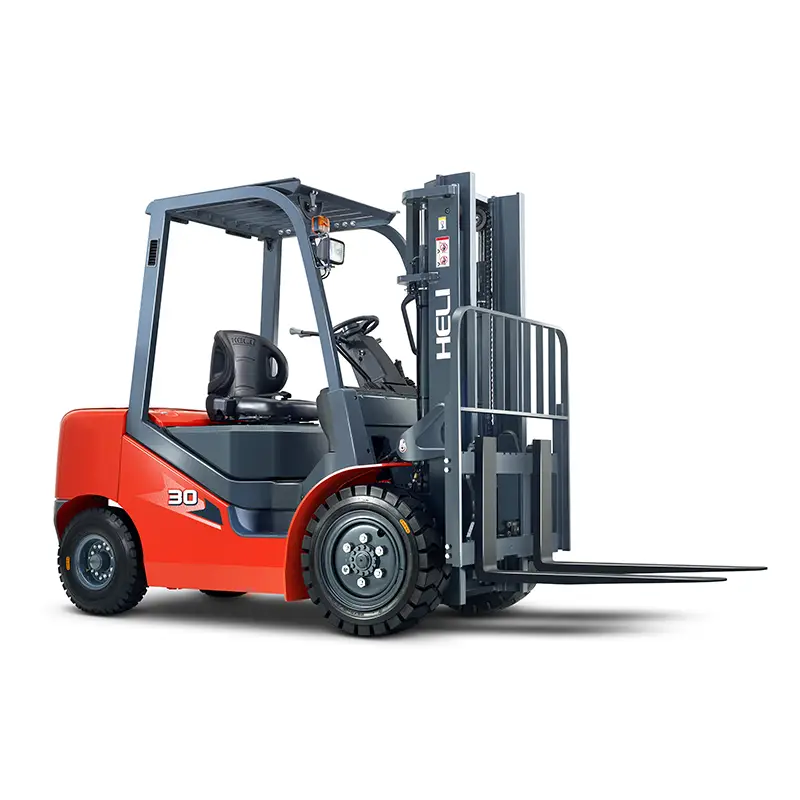

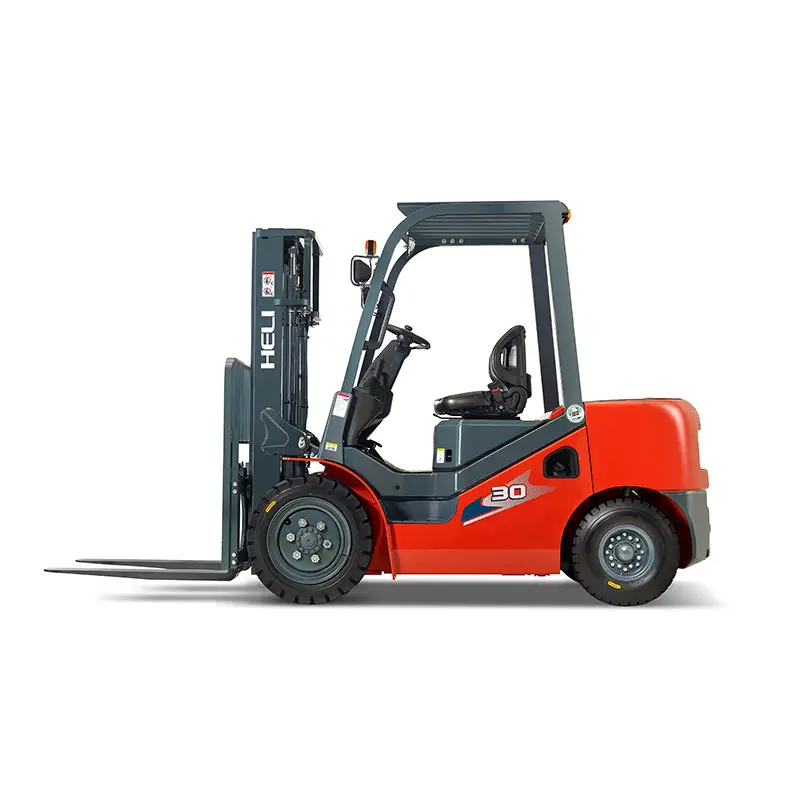

1-3.8t H3 Series Diesel / LPG Forklift Truck

1. Adopting suspended overhead guard to significantly reduce forklift vibration and improve operational comfort;
2. Configuring load sensing hydraulic system to improve work efficiency and reduce vehicle fuel consumption;
3. The core parts like gearbox and drive axle are HELI manufactured, and the key parts are imported, with a low failure rate and reliable quality;
4. Adopts the new generation of cast steering axle from HELI, which has good performance, high reliability, and long service life;
5. Ultra long oil change cycle, with a dust removal mileage over 6000 hours, making it convenient for users.

Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.

Parameter

Model Designation

CP(C)D10/

CP(Q)(Y)D10

CP(C)D15/

CP(Q)(Y)D15

CP(C)D18/

CP(Q)(Y)D18

CP(C)D20/

CP(Q)(Y)D20

CP(C)D25/

CP(Q)(Y)D25

CP(C)D30/

CP(Q)(Y)D30

CP(C)D35/

CP(Q)(Y)D35

CP(C)D38/

CP(Q)(Y)D38

Load Capacitykg10001500180020002500300035003800
Load Centermm500
Wheel base 14501450145016501650170017001700
Overall height(overhead guard)mm21402140214021502150217021702170
Overall length(without fork) mm227722812299258026383818/274827662790
Overall widthmm10701070107011501150122512251225
Min.outside turning radiusmm18751910193021702240240024202480
