Commonly used for material transfer in confined areas.
1. Omnidirectional walking, flexible operation;
2. No load reduction at 2.9m with a load of 1 ton;
3. The AGV adopts large capacity lithium battery which has long service life;
4. Side placed automatic charging and integrated charger;
5. The AGV adopts multiple protections which is intelligent and safe;

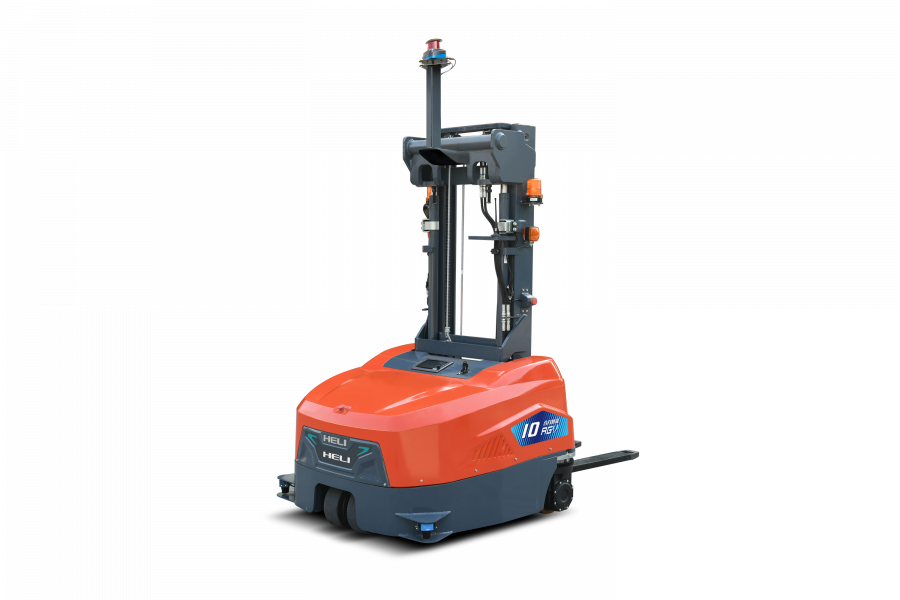

Model Designation | CPD10SQ-AGV1A1LI | |
Typology | / | Counterweight |
Navigation | / | Laser navigation |
Load Capacity | kg | 1000 |
Max. lifting height | mm | 4000 |
Max. travelling speed | km/h | 5 |
Min. turning radius | mm | 1250 |
Communication mode | / | 5G/WIFI |
Battery voltage | V/Ah | 24/272 |
Weight | kg | 2450 |
